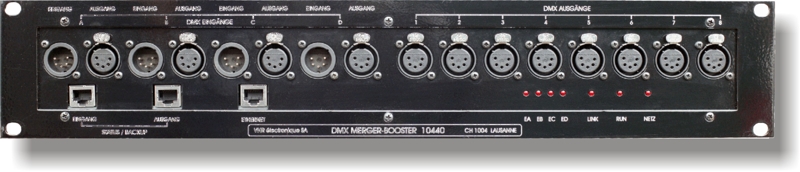

APPLICATION: The Merger-Booster 10'440 family combines up to 4 DMX line signals on a HTP (Higher Takes Precedence) basis or as option on a LTP (Last Take Precedence) basis. The Ethernet option version allows up to 4 ArtNet universes to be selected as inputs.
The input signals are passed through to output connectors ("T" connection) to enable units to be connected to other DMX equipement.
The combined signal is output on 4x2 parallel DMX slew rate limited outputs (opto-isolated), or as option on 4 ArtNet universes. TECHNICAL DATA:
Inputs: | 4x XLR or RJ45 - ESTA Pinout (Ethercon) | Outputs: | 8x XLR or RJ45 - ESTA Pinout (Ethercon) | Ethernet (Option:) | Standard 10baseT - RJ45 connector | Dimensions: | The unit is supplied in a 19'' rack mounting
19 inch (483mm)/2 U (88.1mm) | Unit dimensions: | W x H x D 440mm x 80mm x 165.5mm (without rack mounting panel) | Weight: | 2.2 Kg | Mains supply: | 230V ~ / 50Hz |
|
