LN-200 IMU Data Interface/Logger

Project developed in collaboration with the Ecole Polytechnique Fédérale de Lausanne (Swiss Federal Institute of Technology).

http://topo.epfl.ch
http://www.helimap.ch


The LN-200 IMU data logger represents an ideal solution for demanding applications using GPS/INS software integration. The interface houses any existing GPS/GNSS receiver with 1PPS and NMEA/ZDA output.



Download user manual PDF in english
Download leaflet PDF in english

It precisely synchronizes the incoming IMU data* with GPS time and sends them over the Ethernet port. The high bandwidth of the communication ports easily handles up to 400Hz of IMU data that are logged on customer-provided PC. The precisely time-tagged data can be used for real-time or in post-mission GPS/INS integration.

* An alternative use accomodates synchronization of odometer pulses.

APPLICATIONS:


Click to enlarge

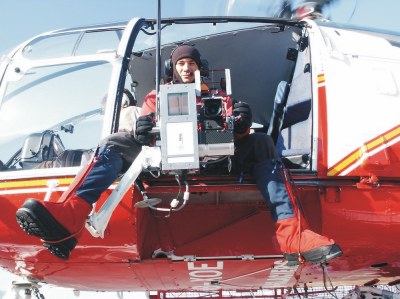

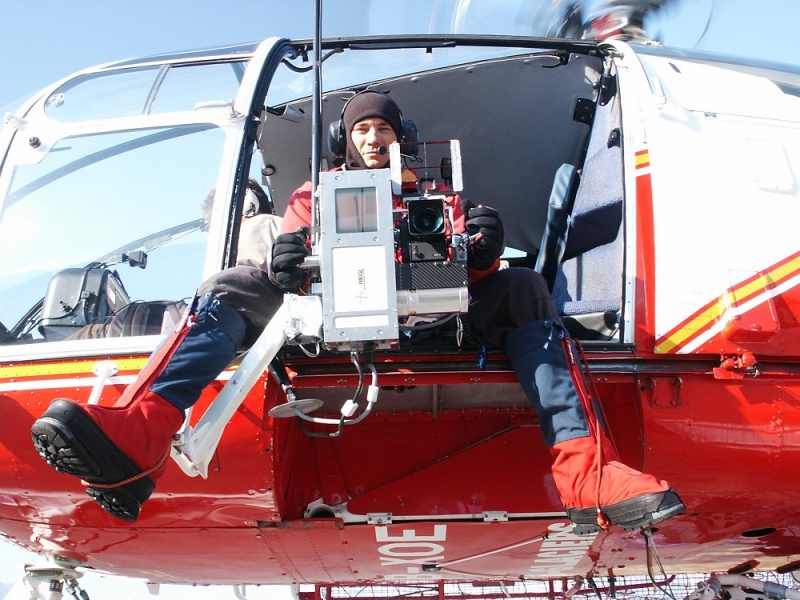

Handheld mobile mapping system on a helicopter integrating GPS/INS with high-resolution CCD digital camera and LiDAR . For more details see: http://www.helimap.ch


SYSTEM FEATURES:

  • IMU data synchronization with GPS or UTC time, accuracy 30µs
  • Handles up to 400Hz IMU (LN200) data or odometer pulse
  • Accommodates any GPS/GNSS receiver with 1PPS and NMEA/ZDA output
  • Output over generic Ethernet port
  • Automated setup
  • Led control
  • Small size and weight
  • Low power consumption
  • Data logging: any PC with Ethernet port
  • Logging software for Windows OS (other OS upon request)
