EXAMPLES OF REALISATION:

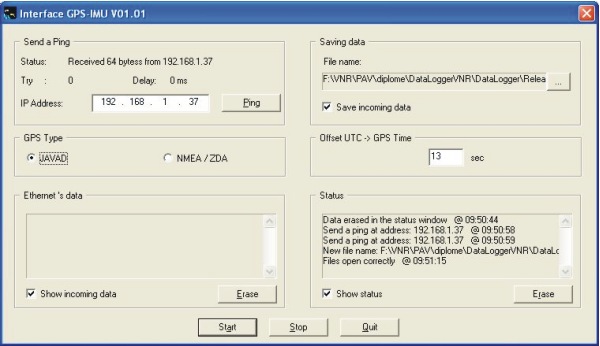

CONFIGURATION PROGRAM:
This program permits the user to configure all the parameters of the system. Data are sent to the system through a RS-485 serial communication link.

LN200 IMU (Inertial Measurement Unit) DATA LOGGER
(Project developped for the Swiss Federal Institute of Technologly in Lausanne (EPFL))
The LN-200 IMU data logger represents an ideal solution for demanding applications using GPS/INS software integration. The interface houses any existing GPS/GNSS receiver with 1PPS and NMEA/ZDA output.

It precisely synchronizes the incoming IMU data with GPS time and sends them over the Ethernet port. The high bandwidth of the communication ports easily handles up to 400Hz of IMU data that are logged on customer-provided PC. The precisely time-tagged data can be used for real-time or in post-mission GPS/INS integration.
