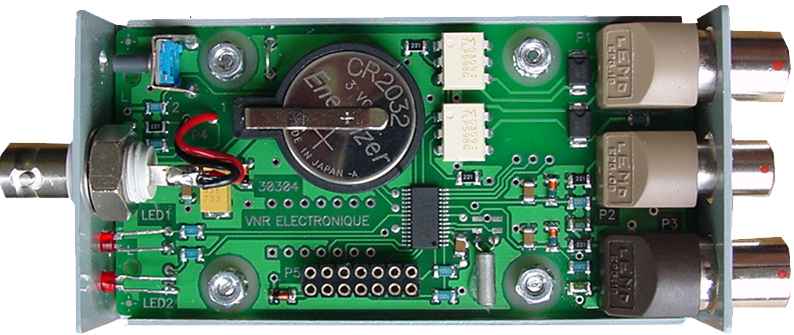

LOWER POWER CONSUMMATION SYNCHRONISR FOR DIGITAL CAMERAS
(Project developped for the Swiss Federal Institute of Technology in Lausanne (EPFL))

CPU: Texas Instrument MSP 430
Flash: 512 KBytes
RAM: 256 KBytes

Dimensions: 95mm x 50mm x 24mm
Weight: 120g

The very low power comsummation system (<100mA) provides an advanced digital timing generator to trigger a digital CCD Kodak coupled with a Hasselblad camera.
In addition the system provides a synchro pulse trigged by the shutter of the camera to permit time stamping trough a GPS receiver.
Thanks to the very low power consummation, the system is always powered on. Battery permits a standby time of about 15'000 pictures within 3 years.
